Product parameter

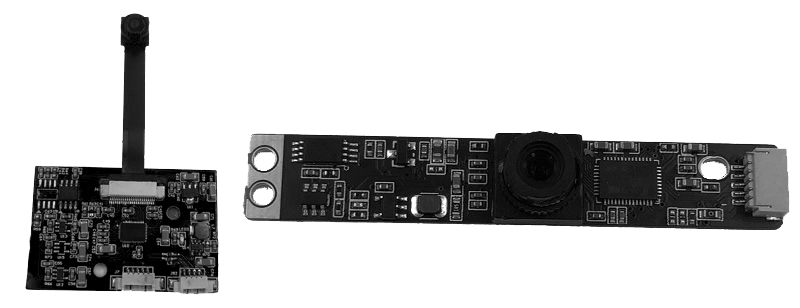

Product part number STAR-CAM-V1X
Product name Cammera module
MJPEG support mode  2592*1944 @ 30FPS
 2048*1536 @ 15FPS
 1920*1080 @ 60FPS
 1600*1200 @ 30FPS
Max 5M pixel (2592*1944)
sensor size 1/4 inch
ISP working frequency 192 MHz
AE balanence Support AWE /AE banlance
Threshold values support RGB chanel adjustment
GPIO output Support 3 chanel light switches
lens angles  60 degree
board size customized optional
communication interface  USB 2.0 HISPEED UVC  protocl direct to OPENCV
Communication speed  32MB/s
Firmware update support online update
OS Windows /linux /android
Working voltage USB  DC 5.0V (+4.75V~+5.25V)
Working current ≤400mA / DC 5V  peak current   ≤150mA / DC 5V   standby current
Working temperature 0 ~+50℃   <95%RH (+25℃) non-condense
Storage temperature -10~+85℃  <95%RH (+25℃) non-condense
Net weight About 50g
Warranty One year warranty
ROHS standard conform to ROHS standard
